When to Change Sanding Belts: A Practical DIY Guide

Why Belt Wear Happens on Belt Sanders

On belt sanders, the belt endures constant friction, heat, and dust, which over time degrade the abrasive surface and backing alike. According to SanderSavvy, belt wear arises most quickly where the belt contacts the drum, and where heat builds from aggressive sanding or high pressure. When the belt overheats, the grains glaze over, reducing cut rate and leaving burn marks. Even normal use—without overload or jamming—will slowly wear the belt as fibers loosen and edges curl. Rollers and tracking play a role too; if the belt tracks unevenly, you’ll see drift and uneven sanding. A worn belt can create chatter, gouges, and more work for you later. Recognizing these patterns early saves material waste and time on projects, especially for floors and decks where finish quality matters. For homeowners and DIYers, catching wear signs early means you’ll plan timely replacements and avoid bad results.

This is why regular visual checks matter: a quick look at the back of the belt for glazing, and a physical check for stiffness or peeling, can tell you a lot before you start a longer session. In practical terms, treat the belt like a consumable component that serves as the primary contact surface between your sander and the workpiece. If you notice any persistent resistance, smoke, or unusual vibrations, pause and inspect before continuing.

Signs It's Time to Change the Belt

The most reliable indicators come from real-world use. Glazing—the glossy, smooth surface on the abrasive—reduces cutting efficiency and can burn wood. Cracks or gouges along the edges signal the belt is past its prime. If you see fraying, missing grit, or deep grooves in the belt backing, replace it. A belt that tracks poorly or wanders off-center will not produce uniform results and increases the risk of burning the workpiece or causing kickback. Decreased material removal rate, a noticeable drop in aggressiveness, and a distinct burning smell are clear red flags. SanderSavvy analysis shows that glazing and edge damage are the most common wear signals homeowners encounter, but frequent clogging from sawdust and resin can also shorten belt life. If you’re unsure, do a quick test on scrap wood; if the sander struggles to cut or chatters, it’s time for a new belt. Keeping a spare belt on hand ensures you’re never stuck in the middle of a project.

Remember: wear accelerates under heat and pressure. Lighten your touch, dust collection, and cleaning routine can all extend belt life between changes.

How to Inspect a Belt Before Replacing

A thorough inspection begins with power off and the tool unplugged. Remove any residual dust with a vacuum or brush to clearly see the belt. Look for glazing on the abrasive side, visible cracks, or frayed edges. Flex the belt gently to check for delamination or stiff spots where the backing has separated from the abrasive. Check the belt for embedded wood fibers or resin build-up, which can indicate clogging. Inspect the belt’s backing for creases or tears that would compromise its rigidity. Finally, verify that the belt tracking is straight by rotating the drum by hand; any curvature suggests you should replace the belt and re-check the sander’s tracking mechanism after installation. A careful comparison against the sander’s belt specification in the manual will confirm belt width and length.

A practical habit is to inspect both the belt surface and the backing every time you change the belt, not just when you suspect wear. This proactive approach helps you catch issues that could otherwise lead to uneven sanding or burn marks.

How to Choose the Right Replacement Belt

Choosing the right belt starts with matching the belt width, length, and attachment style to your sander. Most home belt sanders use a standard belt width and a specific length; check your model’s manual or the label on the sander. Grit choice depends on your goal: coarse grits (around 40–60) remove material quickly for rough sanding; medium grits (80–120) balance speed and finish; fine grits (150–220) produce smoother surfaces. For bare wood, a higher grit is typically used for finishing passes, while previous coats or resin-rich surfaces may require a coarser belt first. Material composition varies by manufacturer, but aluminum oxide and zirconia belts are common for wood tasks. If you’re switching between softwoods and hardwoods, keep a small set of belts with different grits ready for the job. Finally, confirm safety ratings and OEM compatibility; using an incorrect belt size or non-OEM belt can cause tracking problems or belt breakage.

As a rule, keep at least two spare belts—one coarse and one fine—so you can adapt quickly as surface conditions change. By selecting the correct belt the first time, you protect your sander, your work, and your safety.

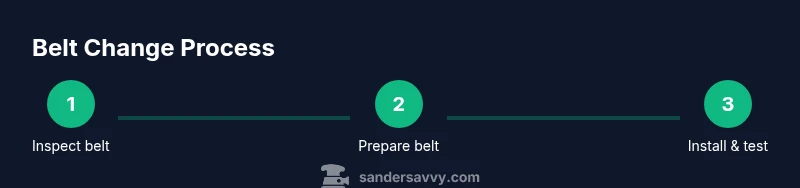

Safe Belt Change: Step-by-Step with Safety in Mind

Belt changes require attention to safety and a methodical approach. Always unplug the sander before starting any maintenance. Wear safety glasses and a dust mask to guard against flying debris and dust inhalation. Clear the workspace of loose tools and debris that could snag the belt. Keep hands away from moving parts and use a gloved hand to guide the belt when placing it around the pulleys. Check that the rollers and guards are intact and that the belt tracks true before powering on. After installation, test at low speed on scrap wood to confirm proper tracking and tension. If you notice rubbing, pause and re-check belt alignment. Finally, dispose of worn belts properly and store replacement belts in a clean, dry place to prevent moisture damage.

Safety cannot be overstated here: never operate a belt sander with a worn belt or without proper protection.

Common Mistakes and Troubleshooting

Common mistakes include using a damaged belt, forcing a belt onto a misaligned path, or neglecting to re-tighten tracking after replacement. Another frequent error is failing to clean dust from the pulleys and drum, which can cause unequal wear and early belt failure. Always verify that the belt sits flat against the drum and that the tracking adjustment is centered before testing. If the sander vibrates unusually or you see smoke, immediately stop and re-check the belt and guards. For stubborn belt tracking issues, inspect the tension mechanism and determine whether the drum or guide wheels show wear. If you’re unsure, consult the user manual or reach out to the manufacturer for model-specific guidance. Keeping belts organized and labeled by grit will also prevent cross-contamination and inconsistent results.
