What Grinder Disc for Tiles: A Practical Guide
Learn how to choose the right grinder disc for tiles, including diamond disc types, tile materials, safety gear, and step-by-step techniques for porcelain and ceramic projects.
In this guide, you’ll learn how to select the correct grinder disc for tiles, when to use diamond discs vs other options, and how to grind safely. We cover tile types (ceramic vs porcelain), disc profiles, grit ranges, and best practices for dust control and edge quality. Essentials include a compatible angle grinder, a proper guard, and an efficient dust-collection setup.
Why tile grinding discs matter\n\nChoosing the right grinder disc for tiles is not optional—it directly impacts edge quality, speed, and tool life. For DIYers, using a tile-focused diamond disc reduces chipping, minimizes edge rounding, and produces a cleaner finish on porcelain, ceramic, or natural stone tiles. The SanderSavvy team emphasizes that the correct disc isn’t a one-size-fits-all purchase; it’s selected based on tile type, grout considerations, and whether you’re dry- or wet-grinding. A poorly matched disc can heat tiles, cause micro-cracks, or leave uneven surfaces that require re-work. Before you start, identify the tile type (ceramic vs porcelain), consider grout lines, and plan your pass sequence to avoid grinding over grout joints. A solid setup also means dialing in guard position and using a dust-control system to keep your workspace safe and visible. The takeaway: the right grinder disc for tiles is a combination of material compatibility, disc profile, and dust-management strategy.
Diamond visibility and disc choice\n\nDiamond discs are designed to cut hard faced tile materials with precision. For ceramic tiles, a diamond disc with a fine grit can minimize edge chipping, while porcelain tiles typically respond better to diamonds with higher grit and a continuous rim. If you’re removing glaze or smoothing rough edges, a turbo-style disc can deliver faster material removal, but it may leave rougher surfaces if used aggressively. Always adjust feed rate and pressure to avoid glazing or gouging. Keep the grinder at a steady speed and work in short, controlled passes to manage heat buildup, dust, and disc wear. Remember: safety starts with appropriate PPE and a clean work area to prevent slips on dust or slurry.
How to identify the tile type and plan your pass sequence\n\nCeramic tiles are generally softer than porcelain and may wear discs differently. Porcelain requires a tougher, diamond-based disc with a continuous rim to prevent edge chipping. Map out your pass pattern: begin with a shallow skim on the outer edge, then move toward the center, using multiple light passes rather than one deep cut. If trimming around outlets or edges, use a specialized grinding wheel attachment with a smaller diameter to maintain control. Always protect adjacent tiles and grout with masking tape when necessary to avoid accidental abrasion. A deliberate plan reduces stray chips and keeps grout lines intact.
Practical safety and dust control basics\n\nGrinding tiles generates silica-containing dust, so containment is essential. Use a vacuum with a HEPA filter, a dust shroud, and perform wet or slurry grinding when possible to keep dust down. Wear eye protection, a respirator rated for fine particulates, and hearing protection. Work in a well-ventilated area and keep children or pets away from the workspace. If you notice unusual disc wear or overheating, pause and reassess your technique or disc choice. Safe, methodical work yields better results and fewer reworks.
Step-by-step planning: from disc selection to finish\n\nStart with a clean, dry surface and secure the tile or panel. Choose a continuous-rim diamond disc for porcelain; opt for a segmented rim or turbo disc for faster stock removal on ceramic with caution. Keep the grinding angle shallow and maintain constant contact with the workpiece. Pause to cool the disc and tile if you see excessive heat or glazing. Clean edges between passes and inspect the surface after each set of passes to ensure uniformity. The ultimate goal is a consistent, smooth edge and minimal chipping.
How to maintain and extend disc life\n\nCorrect disc use protects both the tile and the tool. Avoid grinding directly on sharp corners, and never force the wheel through material. Use moderate pressure, let the disc do the work, and minimize dwell time in one spot to prevent glazing. After grinding, inspect the disc for chips, cracks, or glaze buildup; replace if compromised. Store discs in a dry environment and keep the tool’s guard and shield in place during operation.
AUTHORITY SOURCES\n\nFor safety and material guidelines, consult authoritative resources on silica exposure and dust control: \n- OSHA: Silica safety and exposure controls (https://www.osha.gov/silica)\n- CDC/NIOSH: Silica and dust hazards in construction and grinding (https://www.cdc.gov/niosh/topics/silica/default.html)\n- General safety references on tile work and grinding best practices (institutional extension materials)\nThese sources provide foundational safety practices to accompany the practical disc-selection guidance.
Tools & Materials
- Angle grinder(With a functioning guard and side handle)
- Diamond grinding disc for tile (continuous rim or turbo cup)(Choose based on tile type: porcelain vs ceramic; ensure compatibility with grinder arbor size)
- Dust shroud / vacuum attachment(HEPA-filtered vacuum recommended; connect securely to shroud)
- Personal protective equipment (PPE)(Safety glasses, respirator with P100 or NIOSH-directives, hearing protection)
- Water spray bottle or direct water supply(Use for wet grinding to minimize dust; ensure tool is rated for wet use if applicable)
- Clamps or worktable(Secures tile to prevent movement during grinding)
- Brush and cloths for cleanup(Clean residue and inspect finish after grinding)

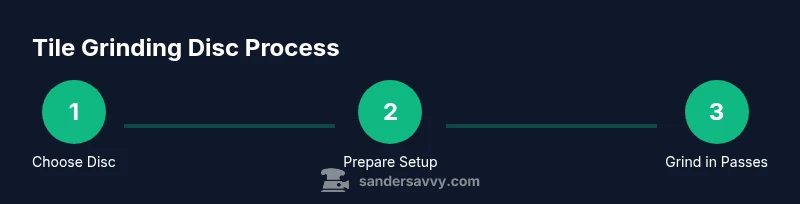

Steps
Estimated time: 45-75 minutes
- 1
Assess tile type and plan the pass
Identify whether you’re working ceramic or porcelain and select a compatible diamond disc with the right rim. Sketch a pass plan that starts at the edge and moves inward with multiple shallow passes rather than one deep cut. This minimizes edge chipping and heat buildup.
Tip: Always test on a small, inconspicuous area first to gauge how the tile reacts to the disc. - 2
Prepare grinder and dust control
Install the disc, attach the dust shroud, and connect the vacuum to capture dust. Verify the guard is securely in place and that you have a clear grip with the handle. If using water, prepare a safe water supply.
Tip: Run the grinder briefly near a scrap tile to confirm dust collection is working before starting on the actual work. - 3
Position and start with light contact
Hold the grinder at a shallow angle and start with a light skim along the tile edge. Let the disc do the work with steady, even pressure. Do not push hard or dwell in one spot to avoid glazing or cracking.
Tip: Begin with a slow speed and increase only if the disc maintains cutting without overheating. - 4
Proceed with controlled passes
Move the tool in smooth, overlapping passes along the edge, then work toward the center. Maintain a consistent pace and avoid grinding over grout lines unless necessary to blend edges. Dry grinding may create more dust; dampen with minimal water as needed.
Tip: Keep gloves loose but firm grip to absorb tool vibration without fatigue. - 5
Cool and inspect between passes
Pause to check for heat buildup and edge quality after every few passes. If the tile feels hot or the edge shows glaze, stop and let it cool. Clean the area and continue with another series of lighter passes.
Tip: Use a damp cloth to wipe away dust from the tile surface for a clear assessment. - 6
Finish and protect grout lines
When edges are smooth and uniform, run a final light pass along the grout line to ensure a consistent edge. Avoid removing too much material from joints; this can weaken tile support. Document any high spots for a final touch-up.
Tip: If grout lines are damaged, consider regrouting after completing grinding for a clean finish.
Your Questions Answered
What is a tile grinder disc and why is it different from a standard grinding wheel?
A tile grinder disc is a diamond-embedded wheel designed specifically for cutting, grinding, and finishing tile surfaces. It differs from standard grinding wheels by having a diamond matrix that can withstand tile hardness, with rim designs (continuous or segmented) that minimize chipping on delicate edges.
A tile grinder disc is a special diamond wheel for tile edges. It’s built to resist chipping and wear, helping you finish tiles cleanly.
Can I use a metal grinding disc on tiles?
Metal grinding discs are not recommended for tiles as they heat quickly, can gouge edges, and often cause cracking or glaze buildup. Use a diamond tile disc instead to preserve tile integrity.
Using a metal disc on tiles can damage the tile; switch to a diamond tile disc for best results.
Should I wet or dry grind tiles?
Wet grinding reduces airborne dust and helps keep the disc cooler, but check that your tool supports water use. Dry grinding is easier on the tools but produces more dust, so use a dust collection system.
Wet grinding minimizes dust; dry grinding creates more dust, so use a good vacuum.
What safety gear is essential for tile grinding?
Wear safety glasses or a face shield, a respirator rated for particulates, hearing protection, and gloves. Ensure the workspace is well ventilated and use a dust-collection system.
Always wear eye protection, a respirator, and hearing protection when grinding tiles.
What’s the difference between porcelain and ceramic disc needs?
Porcelain tiles generally require a harder, finer-grit diamond disc with a continuous rim to avoid chipping. Ceramic tiles may tolerate segmented rims or turbo discs for quicker material removal, while still maintaining edge quality.
Porcelain wants a harder, finer disc with a smooth rim; ceramic can use more aggressive discs, but check the tile edge.
Watch Video
Main Points
- Choose the correct diamond disc by tile type.
- Use proper PPE and dust-control methods.
- Work in controlled passes to avoid chips and heat buildup.
- Wet grinding or slurry reduces dust significantly.
- Inspect edges frequently and maintain tool safety.
