5-Inch Orbital Sander Replacement Pad: Step-by-Step Guide
Learn how to identify, measure, and replace a 5-inch orbital sander replacement pad with practical steps, safety tips, and maintenance guidance for durable performance.
You will learn how to identify, measure, and replace a 5 inch orbital sander replacement pad, ensuring compatibility, safe removal of the old pad, correct attachment of the new pad, and a test run. Key requirements include knowing your sander model, the pad attachment type (hook-and-loop vs. adhesive), and having a fresh pad ready for installation.

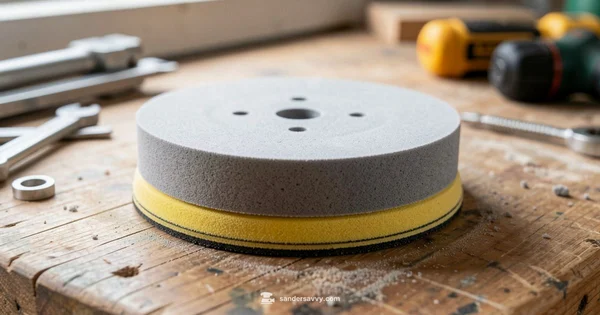

What a 5-Inch Orbital Sander Replacement Pad Is and Why It Matters
According to SanderSavvy, the right pad is essential for clean finishes and long tool life when you work with a 5 inch orbital sander. This section explains what the 5 inch orbital sander replacement pad is, how it differs from generic sanding discs, and why choosing the correct attachment method matters for performance and safety. The 5 inch orbital sander replacement pad is the interface between the sander and the abrasive sheet, providing grip, dust egress, and vibration dampening. When it wears out, you’ll see slower material removal, heat buildup, or gouges. A compatible replacement pad must match the backing plate’s diameter, hole pattern, and attachment system (hook-and-loop or adhesive-backed). Select the pad based on your sanding task—coarse stock removal, fine finish, or polyurethane coats. A high-quality pad maintains even contact, reduces heat, and extends the life of your abrasive discs.
Compatibility Deep Dive: Size, Holes, and Attachment
The 5 inch orbital sander relies on a specific pad to seal the orbit and transfer grit efficiently. Look for a 5-inch diameter, matching hole pattern (often 8-hole or 5-hole), and the correct attachment method for your unit. Hook-and-loop pads offer quick disc changes and broad compatibility; adhesive-backed pads are common on budget models but may wear faster. Ensure the replacement pad’s hole count aligns with your sander’s dust port to maintain dust extraction performance and prevent clogging. Reading the model manual or manufacturer’s site helps confirm compatibility, and many pads provide a small tolerance (±1 mm) if you’re between sizes. If you’re unsure, choose a pad labeled as compatible with most 5-inch orbital sanders and verify the backing plate shape before purchase.
How to Tell If You Need a New Pad Now
Noticeable signs you need a replacement pad include inconsistent sanding, louder operation, red heat marks on the workpiece, or visible wear on the pad’s surface. A worn pad can cause gouges, swirl marks, or uneven stock removal. Regular inspection after each project helps maintain performance. The 5 inch orbital sander replacement pad should lay flat against the backing plate without lifting at the edges. If you see delamination or curled edges, replace it promptly to protect your sander and your work.
How Material Quality Impacts Results
Pad quality affects heat dissipation, dust removal, and finish quality. Higher-quality pads maintain flat contact for longer, resist tearing, and work better with different grits. They also reduce the likelihood of grit getting lodged between the pad and disc, which can scratch the workpiece. When selecting a pad, prioritize those with durable backing materials, well-designed hook loops, and precise hole patterns. The right pad can dramatically improve the life of your abrasive sheets and the consistency of your finish on wooden floors, decks, or walls.
The SanderSavvy Perspective on Maintenance
From a maintenance standpoint, keeping the backing plate clean and dry helps longevity. After use, wipe the plate with a lint-free cloth and let it dry before replacing the pad. If dust or resin builds up, a light solvent wipe is acceptable, followed by a dry wipe. Maintaining a small stock of replacement pads ensures you’re never caught mid-project by a worn-out pad. The goal is reliable performance and safer sanding, especially when working on floors or decks where finish quality matters.
Tools & Materials
- Replacement pad for 5-inch orbital sander (hook-and-loop)(Ensure diameter and hole pattern match your sander’s backing plate; verify compatibility with your model.)
- Safety glasses(Protect eyes from dust and debris during pad replacement.)
- Dust mask or respirator(Minimize inhalation of fine sanding dust.)
- Lint-free cloth(Clean backing plate and pad surfaces before installation.)
- Isopropyl alcohol (optional)(For deeper cleaning of the backing plate if needed.)
- Vacuum or dust extractor (optional but recommended)(Helps keep the work area clean and improves dust control.)

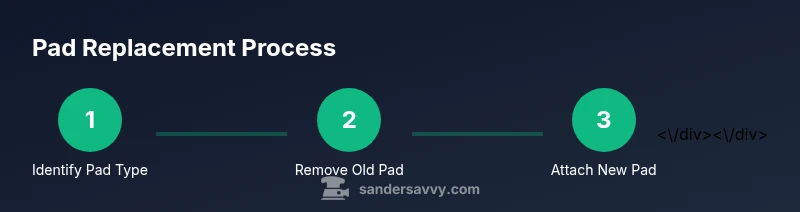

Steps
Estimated time: 25-35 minutes
- 1
Identify pad type and size
Turn off and unplug the sander. Inspect the existing pad to confirm it’s a 5-inch diameter and determine if the attachment is hook-and-loop or adhesive. This ensures you buy the correct replacement pad and avoid compatibility issues.
Tip: If you’re unsure of the hole pattern, check the model manual or compare the old pad to a known-good replacement. - 2
Remove the old pad
Gently pry or lift the edges of the old pad without forcing material away from the backing plate. If it’s belt- or screw-secured, use the appropriate screwdriver or tool to detach it. Keep any screws in a small container for reassembly if needed.
Tip: Do not yank the pad; breaking the backing plate can lead to more expensive repairs. - 3
Clean the backing plate
Wipe the backing plate with a lint-free cloth to remove dust and resin buildup. For stubborn residue, apply a small amount of isopropyl alcohol to the cloth and wipe again. Allow the plate to dry completely before proceeding.
Tip: A clean plate ensures maximum adhesion and prevents disc wobble. - 4
Prepare the new pad
Check the new pad for any packaging debris and verify the hole pattern. If it’s a hook-and-loop pad, ensure the loop side is facing outward and aligned with the sander’s dust path. Do not stretch or twist the pad during installation.
Tip: Hold the pad by the edges to avoid contaminating the adhesive or loop surface. - 5
Attach the new pad
Center the new pad on the backing plate and press firmly from the center outward to eliminate air pockets. For adhesive-backed pads, align carefully and apply even pressure across the surface. Check that the pad lies flat with no curling.
Tip: A clean, dry surface and even pressure prevent edge lifting during use. - 6
Inspect fit and alignment
Spin the sander by hand to ensure the pad sits flush and does not wobble. If you notice any misalignment, remove and reseat the pad, rechecking the centering.
Tip: A misaligned pad can cause heat buildup and uneven sanding. - 7
Test run on scrap material
Plug the sander in and perform a light pass on a scrap piece to confirm smooth operation and dust extraction performance. Listen for unusual noise or vibration and stop to recheck if needed.
Tip: Use a light grit for the test to verify your setup before moving to final finishing work.
Your Questions Answered
What signs indicate a worn-out pad that needs replacement?
Look for slow stock removal, vibration, heat buildup, or visible wear on the pad surface. If you notice these, replace the pad to maintain efficiency and finish quality.
Signs of wear include slow sanding, extra vibration, and heat buildup that can burn the workpiece.
How do I determine the correct pad size for my sander?
Check the sander’s model number in the manual or on the tool label. Most 5-inch orbitals use a 5-inch diameter pad with a matching hole pattern.
Check your model’s manual or the label on the tool to confirm size and hole pattern.
Can I reuse a damaged pad after cleaning?
No. A damaged pad can cause uneven sanding and heat buildup. Replace with a new pad to protect both the sander and the workpiece.
Don’t reuse a damaged pad; replace it for best results.
What attachment methods exist for 5-inch pads?
Most modern 5-inch pads use hook-and-loop backs. Some older or budget models may use adhesive-backed pads; always match the attachment to your sander’s backing plate.
Most are hook-and-loop; some models use adhesive backing.
Is it worth buying premium pads or generic pads?
Premium pads typically offer better wear resistance and dust control, translating to longer life and smoother finishes. If you sand frequently, investing in quality pads pays off.
Premium pads often last longer and give better finishes, especially with frequent use.
Watch Video
Main Points
- Identify pad type and size before purchase
- Clean the backing plate for best adhesion
- Center the pad and test on scrap material
- Avoid mixing pad types on incompatible sanders
- Maintain a small stock of pads to reduce downtime
