What Sander to Use on Car: A Practical Auto Body Guide
Discover what sander to use on car surfaces, comparing orbital and detail sanders, grit progression, safety, and a step-by-step workflow for auto body prep before primer and paint.
To prep a car surface, the best starting point is an orbital sander. For bodywork, begin with 80–120 grit to remove paint and rust, then move to 180–220 grit for a smooth finish. Keep light pressure and steady motion, avoid digging into panels, and always wear a mask. According to SanderSavvy, the most versatile approach is staged sanding using the right grit progression for what sander to use on car.
What sander to use on car: Orbital vs Detail Sander
When deciding what sander to use on car surfaces, start with the orbital sander as your workhorse for bulk material removal and even finishes. A detail sander or finishing sander can be reserved for tight curves and corners. The key is to understand how each tool interacts with the panel and the paint system. The goal is to minimize swirl marks and preserve metal integrity while you prepare for primer.
Grit progression for auto body sanding
Auto body sanding relies on a deliberate grit progression. Start with coarser grits (80–120) to remove old paint, rust, and gouges. Move through mid grits (150–180) to flatten irregularities, then finish with fine grits (220–320) for a uniform, paintable surface. Always adjust based on the surface condition and the primer/paint system you plan to apply.
Tools and safety gear for auto body sanding
Equip an orbital sander with a dust collection system, plus compatible 8–6 inch or 5 inch discs. In addition to the sander, have a tack cloth, masking materials, respirator or dust mask, safety glasses, and a shop vacuum for dust control. Protect doors, chrome, and rubber seals with painter’s tape and plastic film as needed.
Surface types and preparation before sanding
Car bodies consist of metal, existing primers, and sometimes filler. Inspect for rust and repair with appropriate filler only after removing surface contaminants. If you’re working on panels with existing clear coats or multi-stage paints, test a small area first to confirm compatibility with your sanding sequence.
Sanding technique: keeping control and avoiding gouges
Apply light, even pressure and move the sander in smooth, overlapping passes. Let the pad do the work rather than pressing hard. Avoid staying in one spot to prevent heat buildup and gouges. For curved panels, rotate the sander gently and change the angle to follow the contour.
Finishing prep before primer and sealant
After the initial stages, switch to finer grits to achieve a scratch-free surface. Clean off dust with a tack cloth and inspect under raking light. Any low spots or swirls should be addressed with targeted sanding and careful touch-up, ensuring the surface is uniformly flat before primer.
Common mistakes and how to fix them
Common mistakes include over-sanding corners, skipping masking, and using dull discs. If you see swirl marks or heat halos, stop, switch to a finer grit, and recheck the surface. If a gouge remains, fill and re-sand after the filler cures to maintain an even surface.
Dust control, ventilation, and clean-up
Dust is a major factor in auto-body finishing. Use a shop vac, dust collection pads, and filtered air if possible. Work in a well-ventilated area and wear a respirator designed for paint dust. After sanding, wipe surfaces with a tack cloth to remove residual dust before priming.
Pad care and maintenance
Inspect sanding discs for wear and replace when deteriorated. Clean the pad backing to prevent clogging. Store discs flat and in a dry area to avoid contamination. Proper pad care preserves cut quality and reduces heat buildup during long sessions.
When to switch sander types during a project
Begin with an orbital sander for bulk removal, then switch to a detail sander or hand-sanding for tight radii and corners. For final smoothing, reintroduce a fine-grit orbital sanding step. This staged approach minimizes surface defects and ensures a paint-ready finish.

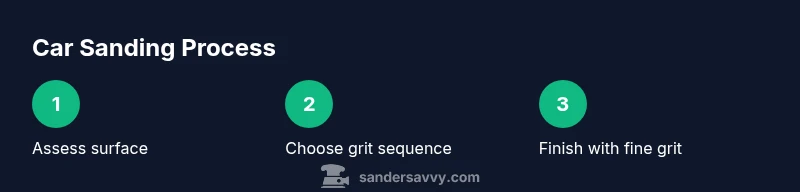

Quick workflow snapshot for what sander to use on car
Plan your grit sequence (coarse to fine), select the correct sander types for each stage, mask off adjacent areas, and verify surface flatness before primer. Following a deliberate workflow reduces rework and improves paint adhesion.
Tools & Materials
- Orbital sander with dust collection(Prefer 5- or 6-inch pad; use random-orbit style for consistency)
- Sanding discs(Grits: 80, 120, 150, 180, 220, 320)
- Tack cloths(Lint-free to remove fine dust)
- Respirator or dust mask(P100 or higher with eye protection)
- Safety glasses(Impact-rated lenses)
- Shop vacuum or dust extractor(Attach to sander if possible)
- Masking tape and plastic film(Protect chrome, seals, and areas not to sand)
- Painter’s cleaner or degreaser(Clean surface before sanding if it’s dirty)
Steps
Estimated time: 60-120 minutes per panel
- 1
Inspect and prep the work area
Assess panels for rust or damage and mask off areas that don’t require sanding. Clean the surface so you can see defects clearly. This keeps dust from entering nooks and improves finish quality.
Tip: Use masking film on wheel wells and trim to prevent accidental scratching. - 2
Attach the coarse grit disc
Install an 80–120 grit disc for initial material removal. Ensure the disc is centered and the backing pad is clean to prevent chatter.
Tip: Test in a small area to verify it removes paint without creating deep gouges. - 3
Rough out the surface
Move the sander with light pressure in overlapping passes. Keep the pad flat and avoid staying in one spot where heat can cause distortion.
Tip: Work with the grain direction when feasible on flat panels. - 4
Switch to mid grit for flattening
Progress to 150–180 grit to smooth irregularities and flatten scratches from the coarse pass. Check for high spots and rework as needed.
Tip: Always wipe dust between grit changes to see true surface texture. - 5
Finish with fine grit
Use 220–320 grit to create a uniform scratch pattern ready for primer. This reduces the risk of visible paint defects later.
Tip: Hold light contact and avoid pressing hard on edges. - 6
Clean and inspect
Wipe with tack cloth and inspect under strong lighting for any remaining imperfections. Address low spots with targeted sanding and re-clean.
Tip: If a filler was used, sand after curing before primer. - 7
Final prep before primer
Make a chemical clean to remove waxes and oils; ensure a dry surface. Mask off surrounding areas one more time before applying primer.
Tip: Avoid moisture on bare metal; moisture can cause corrosion under primer.
Your Questions Answered
Can I use a palm sander on a car?
Yes, for tight areas and curves a palm or detail sander can be useful, but it’s typically less efficient for flat panels. Use it after the orbital sander to reach corners, and avoid heavy pressure that can gouge metal.
Yes, you can use a palm sander for curves, but it’s best as a supplementary tool after the main orbital sanding.
What grit should I start with on bare metal?
Begin with a coarse grit like 80–120 to remove corrosion and old coatings, then progressively move to finer grits for a smooth finish before primer.
Start with 80 to 120 grit on bare metal, then move to finer grits for a smooth finish before priming.
Should I sand wet or dry?
Dry sanding is standard for body work to avoid moisture trapping. Wet sanding is more common in final paint finishing stages to reduce dust, but it requires different techniques and seals.
Dry sanding is typical for body prep; use wet sanding later if finishing layers, with careful technique.
Is it safe to sand primer with a detail sander?
Detail sanders can finish primed surfaces, but ensure you don’t over-sand. Use light pressure and finer grits to avoid thinning or gouging primer layers.
You can sand primer with a detail sander, just use light pressure and fine grit.
Do I need to mask off chrome or badges during sanding?
Yes. Masking chrome, rubber seals, and badges protects them from accidental sanding marks and dust intrusion, ensuring a clean finish.
Mask metals and badges to keep them pristine during sanding.
How does sanding affect paint adhesion?
Proper sanding creates a uniform, micro-rough surface that improves primer and paint adhesion. Skipping steps or using the wrong grit can lead to peeling or cracking later.
Sanding helps paint stick; do it thoroughly but avoid gouges.
Watch Video
Main Points
- Choose an orbital sander as the primary tool for car body prep.
- Follow a grit progression from coarse to fine to achieve a paintable surface.
- Prioritize dust control and masking to protect sensitive components.
- Inspect frequently and address defects before primer.
