How to Make a Disc Sander: A Practical DIY Guide
Learn how to make a disc sander from common parts. This step-by-step guide covers design, materials, safety, and testing to help DIYers build a reliable bench sander for woodworking projects.
Goal: Build a compact, safe disc sander for small projects. The plan uses a stable base, a powered platen, and a standard 125 mm sanding disc. According to SanderSavvy, you can source affordable components and assemble a reliable DIY disc sander with off-the-shelf parts and careful alignment. This quick guide also covers safety checks and testing before first use.
What you’re building and why a disc sander matters
A disc sander is a compact, fast-spinning sanding tool that uses a circular abrasive disc mounted on a platen. For many DIY projects, a bench-mounted disc sander speeds up stock removal and provides a flat, square edge. In this guide, you’ll learn how to make a simple, safe, and reliable disc sander from common parts. According to SanderSavvy, a well-built disc sander can be assembled with off-the-shelf components and careful alignment, delivering consistent results for woodworkers and hobbyists. Key goals include stability, a true sanding surface, safe dust management, and easy maintenance. By understanding the core concepts—motor, platen, disc mounting, and guarding—you can adapt the design to fit a small shop or a larger workshop. This article uses plain, practical steps and avoids exotic parts, making the project approachable for homeowners and DIY enthusiasts who want practical, hands-on guidance.
Design considerations for a DIY disc sander
Before you start, consider speed, disc size, and base rigidity. A modest motor (enough to reach 3,000–4,000 rpm no-load) paired with a flat, square base yields cleaner results and less vibration. Select a 125 mm (5 in) sanding disc or similar, as it provides a good balance between stock removal and control. Ensure the platen is perfectly parallel to the disc and that the disc is centered to avoid uneven wear. The frame should resist wobble; a welded or well-bolted chassis beats a flimsy wood base. Finally, plan dust collection or extraction as part of the design; bags and hoses reduce airborne particles and keep the shop cleaner. Within the decision, remember to account for available space, tool safety, and the ability to adjust or upgrade components later. SanderSavvy analysis shows that a thoughtful, modular approach makes repairs easier and increases the lifespan of your DIY sander.
Core components and sourcing
The core of a disc sander is the motor, the mounting base, and the disc assembly. Pick a compact, bench-friendly motor with a stable mounting flange; verify it has a consistent speed under load and a available shaft for attaching a platen. The platen should be flat and crafted from a rigid material; align it to the disc using a dial indicator or a square. Choose sanding discs with backing pads for even pressure distribution. Add a dust collection adapter, guards, and a clear shield to protect eyes and lungs. For portability and safety, assemble wiring with a switch rated for the motor amperage and include a basic on/off protection. You don’t need exotic parts; most of these items can be found at hardware stores or repurposed from old tools. Remember to respect the power supply and safety regulations.
Build overview and workflow

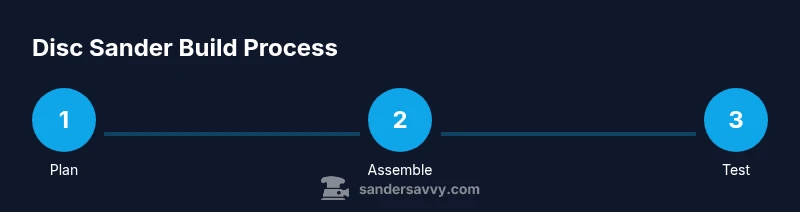

The build follows a simple sequence: plan, assemble, mount, align, wire, and test. Start by leveling the bench and marking the planned positions for the motor, platen, and disc. Fasten the base securely, then attach the motor with a rigid coupling or direct drive. Mount the platen and disc backing, ensuring perpendicularity and parallelism. Install guards and a dust port, then connect the power switch and safety interlocks. When wiring, follow basic electrical precautions and double-check insulation. The testing phase involves running the sander with no load to listen for unusual noises, then running at light load to check for belt slip or misalignment. Use a dial indicator to confirm the platen is square to the disc, and adjust as necessary.
Safety, testing, and maintenance tips
Safety should govern every step of the build. Wear eye protection and a respirator when testing; keep loose clothing away from moving parts. Use a dust collection system to minimize fine particles. After initial testing, recheck alignment regularly and replace worn discs and pads as needed. Document the setup so future adjustments are easy. Store spare parts and keep your workshop clean to extend the life of your DIY sander.
Authority sources
- https://www.osha.gov
- https://www.cdc.gov/niosh/
- https://www.nist.gov
Tools & Materials
- Electric motor (bench-friendly, 120–240V, approximately 0.5–1.0 HP)(Prefer a motor with a stable shaft and compatible mounting flange)
- Stable mounting base/benchtop(Flat, rigid surface to minimize vibration)
- Platen and backing pad for 125 mm discs(Ensure flatness and parallelism to the disc)
- Sanding discs (125 mm / 5 in)(Hook-and-loop or adhesive backing works well)
- Dust collection adapter and hose(Helps maintain a cleaner, safer shop)
- Electrical switch and wiring components(Rated for motor amperage; include safety interlock if possible)
- Tools: drill, wrenches, screwdrivers, calipers(General metal/plasticworking tools suitable for your parts)
- Protective gear: safety glasses, respirator(Always wear PPE while cutting, drilling, and sanding)
- Spare parts: discs, pads, bolts, and washers(Stock up for easy maintenance)
Steps
Estimated time: 4-6 hours
- 1
Plan layout and secure workspace
Define planned motor, platen, and disc positions. Mark reference lines on the base and confirm access to power and dust-collection fittings. Verify the bench is flat and can tolerate vibration during operation. This planning reduces rework later and helps ensure alignment.
Tip: Draft a simple CAD sketch or ruler-based diagram to visualize component placement. - 2
Mount the base and establish a level platform
Attach the base to the workbench with appropriate fasteners. Use a spirit level to ensure the base is perfectly level and square to your reference lines. A non-flat base will translate into wobble and uneven sanding results.
Tip: Check for flatness across the entire base before proceeding. - 3
Mount the motor and drive system
Secure the motor to the base using a rigid mounting plate or compatible flange. Align the motor shaft with the planned platen position to avoid binding or misalignment. Tighten all fasteners to prevent drift during use.
Tip: Use a straight edge or dial indicator to confirm coaxial alignment. - 4
Install platen, disc backing, and disc
Attach the platen so it sits true to the disc plane. Mount a backing pad if using a hook-and-loop disc, and secure the sanding disc in the correct orientation. Recheck the alignment and perpendicularity between platen and disc surface.
Tip: Spin the disc by hand to check for rubbing or wobble before energizing the motor. - 5
Add guards and dust collection
Install safety guards around the wheel area and attach a dust port to the base. Ensure guards do not interfere with operation and that dust collection does not degrade visibility. Route wiring cleanly and secure all loose cords.
Tip: Test with the guard in place to ensure no interference with disc rotation. - 6
Electrical wiring and safety checks
Connect the on/off switch and verify proper wiring with no exposed conductors. Check insulation and ground connections. Finally, do a no-load test to confirm the system spins smoothly and without abnormal noise.
Tip: Always unplug the unit before modifying wiring or changing components.
Your Questions Answered
What is a disc sander, and why would I want to build one?
A disc sander uses a rotating abrasive disc mounted on a flat platen to finish and smooth surfaces quickly. Building one lets you tailor the size, guard, and dust-control features to your workshop, saving time on small woodworking projects.
A disc sander is a compact tool for fast smoothing; building one lets you customize its safety and dust features.
What power do I need for a DIY disc sander?
A modest bench motor that can reach several thousand RPM under no-load is typical. The exact power depends on disc size and intended work, but a balance between speed and torque helps avoid scorching or tearing stock.
A small bench motor with adequate RPM is usually sufficient for a home workshop.
Can I convert an existing sander into a disc sander?
Converting a belt or random-orbital sander into a disc sander is possible but usually requires substantial modifications to mounting, alignment, and safety guards. A purpose-built disc assembly ensures better reliability and safety.
You can modify some sanders, but it’s often easier and safer to build a dedicated disc sander from scratch.
What disc size should I use?
125 mm (5 in) discs are common for DIY builds, offering a good balance of stock removal and control for small to medium projects.
Five-inch discs are a popular starting point for DIY builds.
Is it safe to use dust collection with a homemade sander?
Yes. A properly sized dust collection setup greatly improves air quality and reduces airborne particles. Ensure hoses and ports are sealed and that the system does not restrict wheel rotation.
Dust collection is important and should be part of the design for safety.
How do I calibrate the alignment after assembly?
Use a dial indicator or a square to verify that the platen is perfectly parallel to the disc. Make small adjustments to mounting bolts and re-check until rotation shows zero rubbing.
Check alignment with a straightedge or dial indicator and adjust as needed.
Watch Video
Main Points
- Plan carefully and verify space for safe operation
- Align platen and disc for true sanding results
- Incorporate dust control to protect health and workspace
- Test run with no load, then with light load to verify stability
- Perform regular maintenance to extend tool life
