How to Get Rid of Swirl Marks from a Sander
Learn proven methods to remove swirl marks from a sander on wood. This guide covers grit progression, safe technique, and prevention tips for a smooth, even finish.
By following this guide, you’ll learn how to get rid of swirl marks from sander on wood safely and effectively. We cover grit progression, light passes, and finishing steps to restore a smooth, even surface. The method emphasizes test panels, dust control, and proper technique to prevent new swirl marks.
Why swirl marks happen and how to spot them
Swirl marks are common when using a random orbital sander. If you're asking how to get rid of swirl marks from sander, the first step is to understand how they form: overlapping passes, improper grit, or excessive pressure. They often appear as circular patterns aligned to the sander's orbit and can be highlighted by angled light. Wood type matters: softwoods may show more pronounced swirls if the grit is too coarse, while hardwoods may reveal scratches from fast passes. The key to preventing them is a deliberate progression of grits and controlled motion across the surface. According to SanderSavvy, the best results come from testing on a scrap piece and calibrating pressure before touching the actual workpiece. With the right approach, swirl marks can be minimized or eliminated before you apply stain or finish. SanderSavvy analysis shows swirl marks are usually caused by incorrect grit sequencing and excessive pressure.
Tools and materials you’ll need
Before you start, lay out the tools and supplies. A random-orbital sander is preferred for its forgiving move, but a finishing sander can work if used carefully. Stock up on fresh abrasives: 120-150 grit for initial leveling, 180-220 for refining, and 320-400 for final polish. Use a dust collection system or a shop vacuum and wear a respirator or dust mask and safety goggles. Have tack cloths, a spray bottle for light dampening if you plan to damp-sand, and scrap plywood or test panels for trials. Keep spare abrasive discs clean and free of debris to prevent loading.

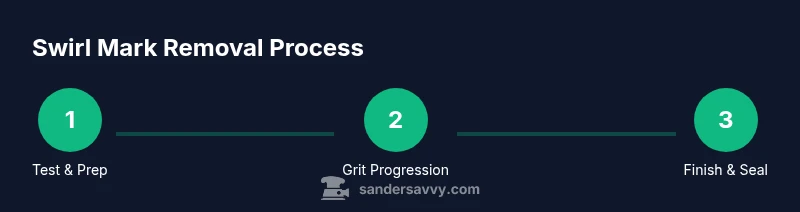

Step-by-step approach to removing swirl marks
A methodical approach reduces the chance of reintroducing swirl marks. Start with a test panel to gauge how the wood responds to each grit. Clean the surface between grit changes to prevent loading and to ensure consistent results. Move from rough to fine grits in small, overlapping passes, maintaining light pressure and even strokes. After each grit, wipe with a tack cloth and inspect under good light to catch micro-scratches early.
Finishing and protecting the surface after removing swirl marks
Once you achieve a smooth surface, your next step is choosing a finish that won’t highlight fine scratches. A water-based polyurethane or a compatible oil-based finish can work, but always test on a scrap piece first. Apply thin coats, allow proper dry times, and sand lightly with 400-grit between coats to keep the surface level. Protect the area from dust and direct sunlight while curing to prevent swirl marks from appearing in the finish.
Common mistakes and how to avoid them
Common mistakes include using too much pressure, sanding too quickly, or relying on worn-out abrasives that load with dust. Skipping test panels means you might miss early swirl signs. Never rush the process or skip cleaning between grit changes, and always work in a clean, well-lit environment to reveal subtle marks early.
Tools & Materials
- Random-orbital sander (with dust collection)(Prefer newer pad and clean dust collection; ensure sanding pad is in good condition.)
- Abrasive discs (grits 120-150, 180-220, 320-400)(Use fresh discs; avoid loading by keeping surface clean between grits.)
- Dust mask or respirator (P100)(Protect lungs from wood dust; use in well-ventilated area.)
- Safety goggles(Eye protection against flying dust and particles.)
- Vacuum with HEPA filter(For effective dust control during sanding.)
- Tack cloth or microfiber cloth(Wipe dust between grit changes to prevent loading.)
- Test panels (scrap wood)(Assess grit strategy and pressure before working on the actual piece.)
- Water spray bottle (optional)(Light dampening can help reduce dust in some cases.)
Steps
Estimated time: 60-90 minutes
- 1
Inspect and prep the surface
Begin with a clean, dry surface. Look for swirl patterns and identify the wood species to tailor your grit choice. Gather test panels to experiment with grit sequences before touching the actual piece.
Tip: Test on a scrap area first to avoid surprises on the finished piece. - 2
Protect the work area and set up the sander
Place the piece on a stable, flat surface. Attach a fresh sanding disc appropriate for the stage (start with 120–150 grit). Ensure dust collection is active and wear a respirator.
Tip: Lock the vac line to the sander to maintain consistent dust control. - 3
Start with a coarse grit to level high spots
Use 120–150 grit to level raised fibers and flatten obvious ridges. Maintain light, even pressure and keep the motion overlapping by about half the pad width.
Tip: Keep the sander moving; staying in one spot creates burn marks. - 4
Progress to mid-grit for refinement
Switch to 180–220 grit. Use shorter passes and continue to overlap. Wipe the surface with a tack cloth between grits to remove dust.
Tip: Check frequently under bright light for remaining swirl patterns. - 5
Finish with fine grit to minimize scratches
Work with 320–400 grit and apply very light pressure. Move in the direction of the grain if you can, while retaining the orbital motion to avoid new swirls.
Tip: Don’t rush this step; the final polish depends on a clean, even surface. - 6
Evaluate and seal
Wipe the surface, inspect at multiple angles, and ensure the wood is uniform. If satisfied, proceed with your chosen finish and allow to cure per manufacturer instructions.
Tip: Keep a clean cloth handy for quick touch-ups and dust removal.
Your Questions Answered
What causes swirl marks on wood surfaces?
Swirl marks are typically caused by improper grit sequencing, excessive pressure, or using worn, loaded abrasives. They appear as circular patterns aligned with the sander's orbit and can be reduced with a methodical grit progression and clean passes.
Swirl marks come from the sanding pattern and grit choices. Use a proper grit sequence and light pressure to reduce them.
Can swirl marks be fixed without refinishing the entire piece?
In many cases, swirl marks can be minimized or removed with careful re-sanding on the affected area and a suitable finish test, especially if the marks are shallow and localized.
You can often fix swirl marks with targeted re-sanding and testing finishes on a scrap piece.
What grit sequence should I use to remove swirl marks?
Start with 120–150 grit to level high spots, move to 180–220 grit for refinement, and finish with 320–400 grit for a smooth final surface. Always wipe between grits.
Begin with 120 to 150 grit, then move to 180–220, and finish with 320–400 grit, wiping between grits.
Is damp sanding recommended for swirl marks?
Damp sanding can help reduce dust and reveal the true surface, but it can raise grain on some woods. If you damp-sand, test first and clamp the wood while drying.
Damp sanding can help in some cases, but test first to avoid raising the grain.
How can I prevent swirl marks in the future?
Use a fresh disc, maintain light, even pressure, perform test passes on scrap wood, and keep the area clean to avoid grit loading during sanding.
Prevent swirls by using clean discs, light pressure, test passes, and good dust control.
What safety steps should I follow when sanding?
Wear a respirator or dust mask, safety glasses, and hearing protection. Use a vacuum with HEPA filtration to minimize airborne dust and keep your workspace well-ventilated.
Wear protective gear and use a vacuum with good filtration to minimize dust exposure.
Watch Video
Main Points
- Use a deliberate grit progression.
- Test and adjust pressure on scrap panels.
- Clean between grit changes to prevent loading.
- Finish with light passes for a uniform surface.
