How to Prevent Swirl Marks with an Orbital Sander
Learn a practical, step-by-step approach to prevent swirl marks when using an orbital sander on wood. This guide covers grit progression, technique, dust control, and finishing tips for a smooth, even surface.
To prevent swirl marks with an orbital sander, use the right grit progression, light even pressure, and consistent, overlapping motions while keeping the pad clean and dust-free. Start with a coarser grit for rough work, then advance through finer grits, finishing with a very light pass on the final grit. This disciplined sequence minimizes swirl patterns and maximizes uniform sheen.
Understanding swirl marks and why orbital sanders can create them
Swirl marks are circular patterns left on the wood surface when sanding with power tools. With an orbital sander, the rotating action combined with a fixed pad pattern can imprint uniform rings if the motion, pressure, or grit choices are inconsistent. According to SanderSavvy, swirl formation is often less a defect of the tool and more a symptom of technique and prep. The goal isn’t to force the wood to look perfectly smooth immediately; it’s to gradually flatten highs and level the surface with controlled passes. Wood responds to sanding differently based on species, grain orientation, and moisture content, so what works on pine may look different on oak. When you understand the mechanics behind swirl marks, you can adjust approach at each stage—from selecting the right pad to planning the final pass with the finest grit. Think of the process as a sequence of deliberate micro-edits rather than one long, aggressive pass.
Key concept: pattern, pressure, and preparation
Recognize that swirl formation stems from three main factors: surface irregularities, tool motion, and abrasive loading. A clean, dry surface reduces clogging, while consistent, flat contact avoids erratic rings. The SanderSavvy team emphasizes that technique matters as much as equipment; even a modest sander can produce a flawless finish with proper motion and grit discipline. Practically, this means anticipating high spots and feathering passes to blend the transitions between grits. By treating each pass as a refinement step rather than a single sanding sprint, you align your work with how wood responds to friction and heat.

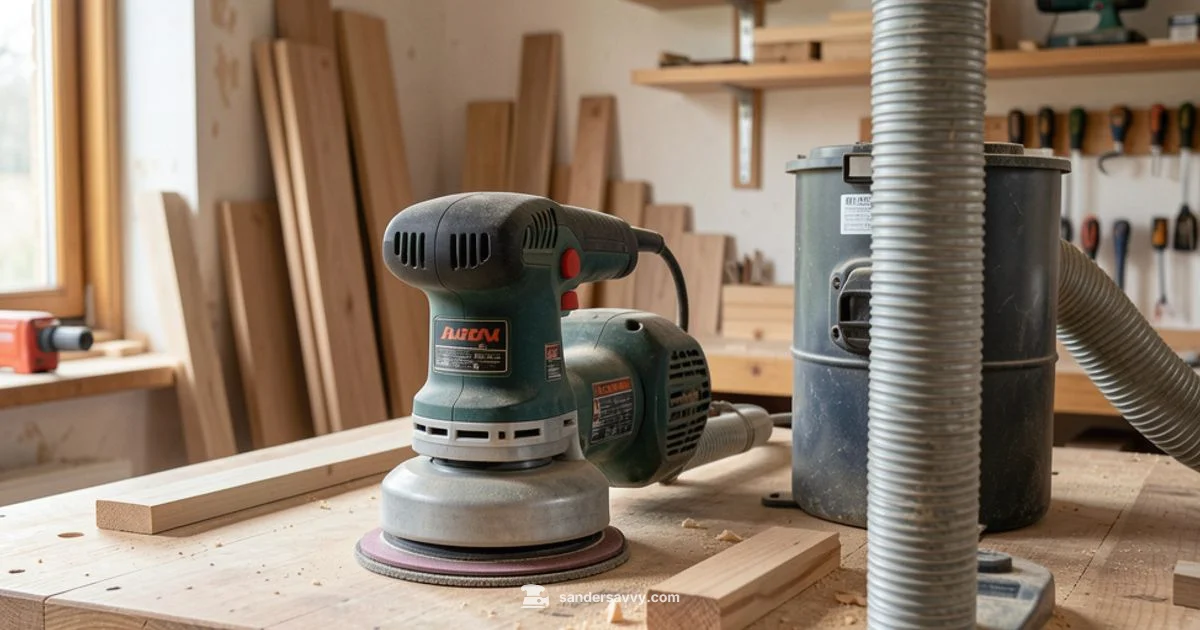

Tools and setup: the right kit for swirl-free results
Choosing the right sander, pad, and discs is as important as your technique. A 3- to 5-inch random orbital sander with a flat, clean pad provides stable contact across the surface. Use sanding discs in a sensible progression: 60–80 for initial flattening, 120 for intermediate leveling, and 180–220 for final smoothing. Ensure the dust collection is active; a clogged pad tends to load and smear, increasing visible swirls. A quality tack cloth or microfiber wipe between grit changes further reduces surface loading. The goal is a dry, debris-free surface at every stage so the abrasive cuts evenly instead of grinding into high spots.
Dust control and surface cleanliness: essential habits
Dust is a primary enemy of swirl-free sanding. It fills pores, loads the abrasive, and creates micro-grooves that translate into visible swirls after finishing. Set up a reliable dust collection system or a shop vacuum, and keep a dedicated tack cloth handy for every grit change. Periodically wipe the disc and pad with a clean cloth to remove built-up resin, dust, and fibers that can degrade performance. Consistent cleanliness reduces defect risk and yields more uniform results across the entire board.
Step-by-step technique: speed, movement, and pressure
Maintain a steady, comfortable pace with the sander moving in overlapping strokes. Keep the pad flat on the surface; avoid tilting or rocking, which creates directional scrapes. Start each pass slightly before a high spot and overlap the previous pass by at least half the pad width. Let the sandpaper do the work—don’t force the tool—so heat buildup stays low and the cut remains even. If you notice a developing pattern, switch to a lighter grit and re-cross the area to blend the swirls out.
Grit progression and scheduling changes
Move progressively through grits, not by jumping forward too quickly. Begin with a coarser grit to flatten imperfections, then move to progressively finer grits in straight lines across the grain, followed by cross-grain passes for balance. When the surface feels smooth and visually uniform (no shiny patches), switch to the next finer grit. Avoid skipping grits if the surface still shows visible irregularities. The goal is to minimize abrasive loading, keep a consistent contact patch, and reduce heat buildup that can set swirl patterns in deeper layers.
Final leveling and preparing for finish
After the final grit, perform a light pass with the finest abrasive you plan to use for finishing. Wipe the surface with a tack cloth to remove all dust, then inspect with oblique lighting to catch any remaining scratches or swirl lines. If you see any, mark and rework those spots with a fresh sheet of the same grit, applying minimal pressure and a very light touch. A clean surface guarantees the finish adheres evenly and enhances clarity and depth.
Finishing considerations: compatibility and sealing
Before applying finish, ensure the surface is completely dry and free of dust. Some finishes highlight minor imperfections more than others, so test a small area with your chosen coating. If swirl marks remain after finishing, they are often due to trapped dust or residue rather than the sanding itself. In such cases, lightly scuff sand the area with the same grit, re-clean, and re-coat. With careful technique, you can achieve a uniform, glass-like surface that showcases the wood grain without obvious rings.
Common mistakes to avoid (and quick fixes)
Avoid excessive pressure, uneven pad wear, and failing to remove residue between grit changes. These mistakes contribute directly to swirl marks. Quick fixes include re-sanding with a finer grit, ensuring your pad is flat and clean, and using a fresh sheet of abrasive. If swirls persist, step back one grit, re-sand, and proceed with caution. By maintaining a methodical approach, you minimize the chance of reintroducing swirls and keep the finish consistent across boards.
Maintenance and best practices for future projects
Store sanding discs in a dry, cool place and replace worn pads that have hollowed contact surfaces. Regularly inspect your sander’s vacuum system and replace any clogged filters. Practicing consistent technique—paired with proper grit progression and dust control—reduces swirl risk on future projects and saves time in the finishing phase.
Tools & Materials
- 3- to 5-inch random orbital sander(Variable speed preferred; ensure straight, flat pad)
- sanding discs(Grits 60, 80, 120, 180, 220; PSA or hook-and-loop)
- foam or cork sanding pad(Keeps pad flat and distributes pressure evenly)
- dust collection system or shop vac(Attach to sander if possible; reduces loading)
- tack cloth or microfiber cloth(Use between grit changes to remove dust)
- painter's tape or masking tape(Protect nearby edges and create clean lines)

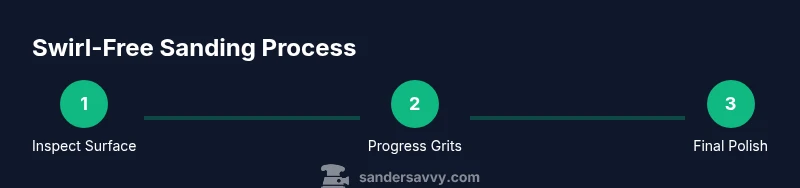

Steps
Estimated time: 60-90 minutes
- 1
Inspect and select initial grit
Assess the surface for roughness, checks, and grain direction. Choose an initial grit that removes the most material efficiently without overloading the surface. The goal is to level high spots without creating deep scratches.
Tip: If you’re unsure, start with 60–80 grit on a hidden area to gauge behavior. - 2
Prepare the work area and equipment
Attach the sanding pad, secure the sander, and connect the dust collection. Place masking tape on edges to avoid gouging. Ensure you have fresh discs readily available for quick changes.
Tip: Test the vacuum setup by running a quick pass on scrap wood first. - 3
Set speed and posture for even pressure
Select a mid-range speed, maintain a light but firm grip, and keep the sander flat against the surface. Avoid tipping the unit or pressing hard at any spot, which can create burn marks and swirls.
Tip: Let the tool do the cut; pressure should be steady, not heavy. - 4
Make overlapping passes in straight lines
Move the sander in straight passes with 50% overlap. Change direction on each pass to distribute wear and avoid repeating the same texture. Maintain consistent contact and avoid pauses that let the pad tip.
Tip: Keep your wrists relaxed to reduce hand fatigue and maintain control. - 5
Cross-check with a finer grit
After finishing the initial passes, switch to the next finer grit and repeat the overlapping strokes. Look for uniform sheen and absence of deep scratches. If you detect shiny patches, rework with the same grit before advancing.
Tip: Dust removal between grit changes is critical for a clean cut. - 6
Finalize with the finest grit
Complete the final pass with 180–220 grit. Use lighter pressure to refine the surface. Inspect from multiple angles to catch any swirl or scratch lines that need rework.
Tip: A quality finish depends on thoroughness of the final sanding step. - 7
Dust removal and surface wipe
Vacuum the area or wipe with a tack cloth to remove all residue. A clean surface is essential before any finish is applied, as dust can telegraph through coatings.
Tip: Never skip this step; dust acts like tiny files in the finish. - 8
Test on a scrap piece
Always test your finish on a scrap area to confirm swirl-free results before proceeding to the entire project. This helps catch issues without risking the actual piece.
Tip: Use the same lighting you’ll use for the final inspection. - 9
Apply finish and cure
Apply your selected finish according to its directions. Allow ample cure time in a dust-free environment. Swirls left from sanding should not appear post-coating if prep was thorough.
Tip: Avoid rushed coats; multiple thin layers outperform one thick coat. - 10
Inspect and address any remaining marks
If you notice swirl lines after the finish, lightly scuff sand with the same grit, re-clean, and re-coat. Persistent swirls often respond to a targeted touch-up rather than a full redo.
Tip: Keep a small practice board to test adjustments quickly.
Your Questions Answered
What causes swirl marks when using an orbital sander?
Swirl marks are typically caused by uneven pressure, improper grit progression, and abrasive loading from dust. The orbital motion can magnify small surface inconsistencies if the pad isn’t flat or if dust isn’t removed between passes. A disciplined technique and clean surface greatly reduce swirl risk.
Swirl marks usually come from uneven pressure, wrong grit order, or dirty pads. Keep the pad clean, move smoothly, and progress through grits to avoid swirls.
What grit sequence helps prevent swirl marks on bare wood?
A typical sequence starts with 60–80 grit for initial flattening, moves to 120 for leveling, and finishes with 180–220 grit for a smooth final pass. Adjust based on wood hardness and surface condition, and never skip a grit if visible scratches remain.
Start with 60–80, then 120, then 180–220 for a smooth finish. Don’t skip a grit if scratches are still visible.
Can dust control alone prevent swirl marks?
Dust control reduces loading on the abrasive and prevents scratches that become swirls after finishing. While essential, it must be paired with proper technique, pad flatness, and consistent motion.
Dust control is crucial, but so is keeping the pad flat and moving smoothly.
Do swirl marks disappear after applying finish?
Swirl marks often remain visible if they were established during sanding. If they appear after finishing, re-sand the affected area with the same grit, clean thoroughly, and reapply the finish.
If swirls show after finishing, sand the area lightly again and reapply the finish.
Is it ever okay to use water during sanding?
Water can raise grain in some woods and lead to raised fibers or inconsistent texture. For most domestic woods, dry sanding is safer to maintain uniform surface and finish adhesion. If you must use moisture, test on a scrap first and plan a thorough dry time.
Dry sanding is usually safer; test any moisture method on scrap first.
Should I re-sand if swirls appear after applying finish?
Yes, re-sand the affected area with the same grit, remove dust completely, and re-coat. If swirls persist, verify the finish and application technique, as some coatings can reveal under-sanded textures more clearly.
If swirls show after finishing, re-sand the area and re-apply the coating.
Watch Video
Main Points
- Use a deliberate grit progression from coarse to fine.
- Maintain flat, even contact and overlapping strokes.
- Control dust and pad loading to prevent swirl transfer.
- Inspect under angled light and test finishes on scraps.
- Finish with a light pass on the final grit for uniform sheen.
