How to Remove Backing Plate from Orbital Sander
Learn a safe, step-by-step method to remove the backing plate from your orbital sander. This guide covers required tools, safety checks, and post-removal tests to keep sanding projects on track.
You will safely remove the backing plate from an orbital sander and inspect or replace it as needed. You’ll need a screwdriver or hex driver, an Allen wrench, and basic safety gear. This guide provides time estimates, common pitfalls, and post-removal checks to keep your sander in prime condition.
Why removing the backing plate matters
The backing plate is a critical interface between the sanding disc and the sander’s motor. Over time, fasteners can loosen, the plate can wear unevenly, or accumulated dust can clog the attachment points. Knowing how to remove backing plate from orbital sander helps you inspect wear, replace damaged hardware, and ensure the machine runs smoothly and safely. When you perform this maintenance, you reduce heat buildup, prevent disc chatter, and extend the life of the sander. As you work through this process, remember that proper alignment and clean threads are essential for a secure fit and optimal sanding results. This guidance aligns with best practices that SanderSavvy advocates to keep DIY projects progressing without avoidable downtime.
Backing plate basics: what it does and when to replace
A backing plate provides the rigid surface that your sanding disc relies on for even contact with the workpiece. Worn holes, torn threads, or a bent plate can cause uneven wear, increased vibration, and poor finish. Replacement is typically warranted if you notice excessive wobble, cracks near screw holes, or if the plate is permanently deformed. Before replacing, verify that the screws and washers are in good condition and that the new plate matches your sander model. Keep spare plates in your tool bin for quick swaps after heavy use or when switching grit discs is frequent.
Safety first: prep and precautions
Disassembly should never be attempted with the tool powered or connected to a power source. Always unplug the sander and discharge any static electricity by touching a grounded metal surface. Wear eye protection and a dust mask to guard against debris. Work in a well-lit area on a stable surface. If the backing plate is tight due to corrosion or grit, proceed with patience and avoid forcing any component, as that can strip threads or bend the plate.
What you’ll need: tools and materials
Before you begin, gather the essential tools and safety gear. You’ll likely need a screwdriver (Phillips and/or flat-head), an Allen wrench/hex driver compatible with your model, a magnetic tray to keep fasteners, and basic PPE such as safety glasses. Optionally, have a small brush or compressed air to clean dust from the mounting holes. Having a replacement backing plate on hand is convenient if you discover wear during inspection. See Tools & Materials section for a complete list with notes.
Common issues and how to avoid damage
Dust buildup, misaligned discs, and overtightened screws are common culprits when removing or reinstalling a backing plate. Never use a power tool to force a stubborn plate; instead, double-check all fasteners, verify screw type, and consult your model’s manual for torque guidance. Avoid using lubricants on metal threads unless specified by the manufacturer, as this can attract more dust and hamper future assembly. If you encounter stripped screws, pause and switch to extraction tools rather than continuing to torque.

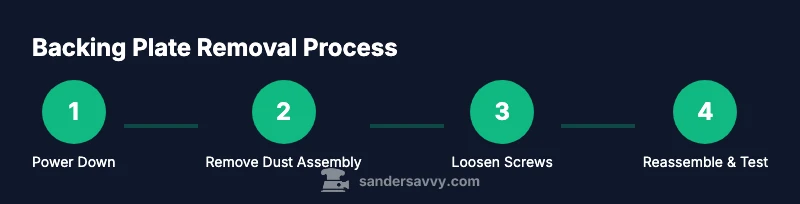

Step-by-step overview of removal process
This section offers a high-level view of the removal workflow so you know what to expect before you start. Begin by ensuring the tool is unplugged and the dust extraction system is detached. Identify all screws or clips securing the backing plate, and prepare a clean work area to prevent small parts from rolling away. As you proceed, keep track of fasteners and springs, and plan for a potential reassembly sequence to preserve correct orientation. Finally, inspect the plate and disc alignment surfaces for wear and clean any residue from mounting holes.
Aftercare: inspect, clean, and reassemble
Once the backing plate is removed, inspect screw holes, threads, and the plate’s contact surface for nicks, burrs, or deformed areas. Clean the mating surfaces to remove resin or dust that could compromise attachment. When reinstalling, loosely stack screws first to ensure even distribution, then tighten in a criss-cross pattern to avoid warping. Reattach the dust collection interface and perform a test run at low speed to confirm stable operation and vibration-free sanding.
External references and safety guidelines
For broader tool-safety standards, you can consult reputable safety resources. These references provide general guidelines that support safe handling of power tools like orbital sanders, including proper maintenance practices and PPE recommendations. Always follow the manufacturer’s instructions specific to your model when removing components such as a backing plate. For further reading, see the listed sources in the AUTHORITY SOURCES section.
Tools & Materials
- Phillips screwdriver(Size varies; commonly #2)
- Flat-head screwdriver(Useful for prying tabs if present)
- Allen wrench / hex driver(Common sizes vary; check model manual)
- Magnetic parts tray(Keeps washers and screws organized)
- Safety glasses(Eye protection during disassembly)
- Dust mask(Optional but recommended in dusty environments)
- Replacement backing plate (optional)(Have on hand if wear is found)
- Soft brush or compressed air(Clean mounting holes and surfaces)
Steps
Estimated time: 15-25 minutes
- 1
Power down and unplug the sander
Verify the sander is disconnected from power and unplugged. Allow any residual charge to dissipate, and wait for the tool to cool if it has been in use. This prevents accidental start-up during disassembly.
Tip: Label or place the plug and cord away from your workspace to avoid accidental reattachment. - 2
Remove the dust collection assembly
Carefully detach the dust bag or dust shroud to access mounting screws. This step clears the way to view the backing plate screws and prevents debris from getting into the motor housing during removal.
Tip: Do not yank; support the bag/assembly to avoid tearing connections. - 3
Identify mounting fasteners
Locate all screws, clips, or clips that hold the backing plate in place. Some models use springs or wave washers in addition to screws. Take a quick photo to reference the reassembly order.
Tip: If you see a spring, remember its orientation; you’ll need it when installing the plate. - 4
Loosen and remove fasteners
Carefully loosen the screws with the appropriate driver. Do not fully remove all fasteners in one go; loosen gradually to prevent misalignment. Keep fasteners in a tray to avoid loss.
Tip: If a screw resists, stop and verify you’re using the correct driver size. - 5
Detach the backing plate
With fasteners removed, gently lift or slide the backing plate away from the orbital mechanism. Be mindful of any springs or shims that may be attached to the plate.
Tip: Use a plastic pick or soft tool to avoid scratching the mounting surfaces. - 6
Inspect and clean
Examine screw holes for wear, check the plate for warping, and clean any resin or dust from contact surfaces. Residue can cause misalignment when reassembling or affect sanding performance.
Tip: Wipe surfaces with a dry cloth and avoid abrasive cleaners that could damage finishes. - 7
Decide on replacement
If you observe wear, decide whether to reuse the current plate or install a replacement. Compare the old plate with a new one to confirm compatibility with your model and grit discs.
Tip: Keep the old plate only if it passes a visual inspection; otherwise, replace to ensure optimal contact. - 8
Reassemble and test
Place the backing plate back onto its alignment pins or mounting holes. Tighten screws in a criss-cross pattern to even torque. Reattach the dust collection assembly and run the sander at low speed to confirm stability.
Tip: Don't over-tighten; snug is usually enough to secure without warping.
Your Questions Answered
Is it safe to remove the backing plate while the sander is hot?
No. Allow the sander to cool completely before disassembly to avoid burns or warping. If the tool is warm, wait until it reaches ambient temperature.
No. Let it cool completely before you start.
Should I replace the backing plate after removing it?
Not always. Inspect for wear, cracks, or warping. Replace if damage is evident or if you plan to switch to a different grit disc compatibility.
Only replace if you see wear or damage.
What if screws won’t budge?
Ensure you’re using the correct driver size and that no hidden clips hold the plate. Apply gentle counter-torque and consider a small amount of penetrating oil if corrosion is suspected, then wait a moment before retrying.
Try the right driver and, if needed, a tiny amount of oil and wait before retrying.
Can I reuse screws and washers?
Yes, if they are undamaged and threads are clean. If any fastener shows wear or stripped threads, replace them to ensure a secure fit.
Yes, if undamaged; otherwise replace.
How often should I inspect the backing plate?
As part of routine maintenance, especially after heavy use or grit changes. Regular checks help prevent vibration and finish issues.
Inspect routinely after heavy use.
Watch Video
Main Points
- Disconnect power before any disassembly.
- Inspect wear and replace the plate if needed.
- Organize fasteners to prevent loss during reassembly.
- Test the sander at low speed after reassembly to confirm proper function.
